FWDM 3 Channel FC SC APC UPC WDM CWDM DWDM

Name: FWDM 3 Channel FC SC APC UPC WDM CWDM DWDM
Brand: CY COM
Price: 8 USD

Quality FWDM 3 Channel FC SC APC UPC WDM CWDM DWDM wholesale

Brand Name : CY COM

Model Number : WDM FWDM

Certification : ISO RoSH SGS

Place of Origin : Shenzhen China

MOQ : 10pcs

Price : $8-$10

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : 8-9 working days

Packaging Details : Individual gift carton box

Model No. : SC APC FWDM Optical Filter, Single Mode Multimode

Fiber Type : 250um Bare fiber or 900um loose tube 2.0/3.0mm

Operation Wavelength : 1310nm 1490nm 1550nm

Connector : FC SC UPC APC (OEM

Case : steel tube

Insertion loss : pass<0.6dB, reflection<0.4dB

Contact Now

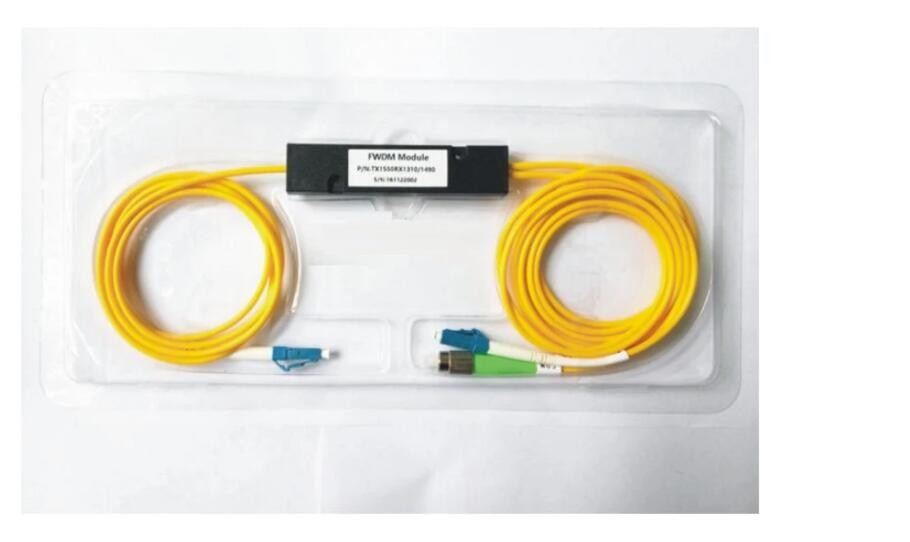

FWDM 3 Channel FC SC APC UPC WDM CWDM DWDM

FWDM Optical Filter 3 Channel FC SC APC UPC FWDM 1310nm 1490nm 1550nm Optical Filter

Description

FWDM Optical Filter 3 Channel FC SC APC UPC FWDM 1310nm 1490nm 1550nm Optical Filter

Filter WDM module extensively used in optical amplifiers, WDM networks.

The device combines or separates light at different wavelengths (1310nm/1490nm/1550nm) in a wide wavelength range.

It can expand the capacity of a single fiber to achieve bidirectional communication, so that widely used in optical network upgrade and expansion, or introduce new comprehensive business etc.

It works on 1310nm/1490nm, so CATV signal here is delivered over same fiber using 1550nm, and FWDM is a place where all this get together.

♦ Application Scope:

FWDM Optical Filter 3 Channel FC SC APC UPC FWDM 1310nm 1490nm 1550nm Optical Filter

System Monitoring
Transmitters and Fiber
Fiber optical amplifier

CATV System

FTTH System

♦ Features&Advantage:

FWDM Optical Filter 3 Channel FC SC APC UPC FWDM 1310nm 1490nm 1550nm Optical Filter

Wide Wavelength Range
Low Insertion Loss
High Channel Isolation
High stability and reliability

Parameter	Multiplexer	Demultiplexer
Operating central wavelength	1270nm – 1610 nm
Central wavelength accuracy	± 0.5 nm
Channel spacing	20 nm
Passband at -0.5dB	Minimum 13 nm
Insertion Loss (dB)	pass<0.6dB, reflection<0.4dB
Channel uniformity	Maximum 1 dB
Channel ripple	Maximum 0.3 dB
Adjacent isolation	N/A	Minimum 30 dB
Non-adjacent isolation	N/A	Minimum 40 dB
Insertion loss temperature sensitivity	Maximum 0.003 dB/ºC
Wavelength temperature shifting	Maximum 0.002 nm/ ºC
Polarization temperature loss	Maximum 0.1 dB
Polarization mode dispersion	Maximum 0.1 ps
Directivity	Minimum 50 dB
Return loss	Minimum 45 dB
Power handling	500 mW
Operating temperature range	-5 to 76 ºC
Storage temperature range	-40 to 85 ºC
